HF9610 PLC Remote Control Download Monitoring Module Serial Supports Mitsubishi, Siemens, Omron, Schneider, Panasonic, Xinjie...
Rated 3.5/5 based on 11 customer reviews

HF9610 PLC Remote Control Download Monitoring Module Serial Supports Mitsubishi, Siemens, Omron, Schneider, Panasonic, Xinjie...

Disponibilité : En stock
€91,51 €102,50
Color

SPECIFICATIONS

Brand Name: HF HIGH-FLYING

Type: Cable Adapter

Package: Yes

Products Status: STOCK

Model Number: HF9610

Processor: MIPS

Basic Frequency: 320MHz

Operating System: eCos

Baud Rate: TTL: 300 bps~230400bps

Size: 95mm x 65mm x 25mm

Operating Temp.: -25 ~ 85°C

Input Voltage: 5~36VDC or 9~50VDC

Accessory: 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna

HF9610 PLC HF9610 PLC Remote Control Element Product Description

The WiFi serial port server HF9610 provides a product for protocol conversion between RS232 / RS485 / RS422, Wi-Fi, and meets the solution of industrial product serial network data transmission channel. This product integrates Wi-Fi, Ethernet, high-speed serial port, RS232, RS485, RS422 and other rich hardware interfaces, and based on eCos operating system, the product includes a web page, TCP / IP protocol stack, dedicated to remote monitoring PLC, supports Mitsubishi, Siemens, Omron, Schneider, Panasonic, Xinjie, etc.

HF9610 Overview of Characteristic

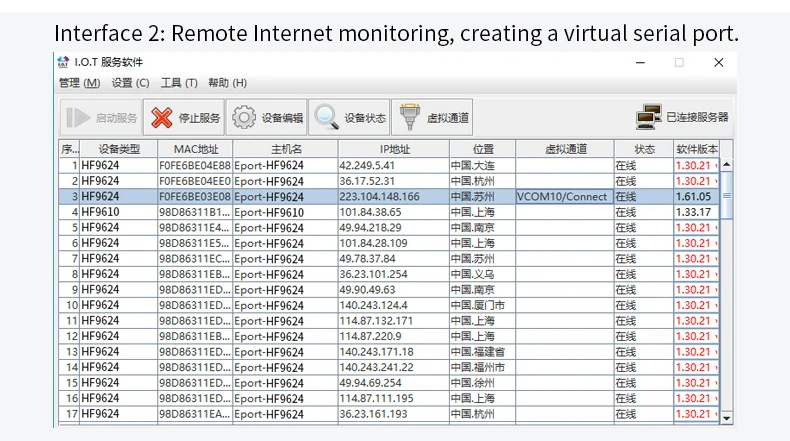

MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos Support Virtual COM, Virtual Path Connect to PLC for Remote Monitor Support TCP/IP/Telnet /Modbus TCP Protocol Support RS232/RS422/RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Upto 230400 bps Support STA/AP/AP+STA Mode Support Router or Bridge Network Working Mode. Support 10/100M Ethernet Auto-Negotiation Support Easy Configuration Through a Web Interface or PC IOTService Tool Support Security Protocol Such As TLS/AES/DES3 Support Web OTA Wirelss Upgrade Wide DC Input 5~36VDC Size: 95 x 65 x 25 mm (L x W x H)

TEST TOPOLOGY OF HF9610 PLC HF9610 PLC Remote Control Element

Connect the hardware as shown below. The PC can be connected to the HF9610 by Wi-Fi or Etherne.
