INFIRAY C210 Best Infrared Thermal Imager Camera Geothermal Detector Temperature Imager 256*192 Pixels, Equivalent to UTi260B
Rated 3.5/5 based on 11 customer reviews

INFIRAY C210 Best Infrared Thermal Imager Camera Geothermal Detector Temperature Imager 256*192 Pixels, Equivalent to UTi260B

Voir tous les produits de : MultiShop.lu
Disponibilité : En stock
€343,22 €367,73
type

SPECIFICATIONS

Brand Name: INFIRAY

Certification: CE

Is Smart Device: Yes

Power Type: Lithium battery

Style: Handheld

Display Size: 1.9 Inches & Under

Features

Sensor Resolution: 256*192
Field of view: 56°*42.2°
NETD : <50mk
IFOV: 3.8mrad
Focusing method: Free focus
Frame rate: 25hz
Temperature measurement range: -20℃ - +550℃(-4℉-1022℉)
Temperature measurement accuracy: ±2℃ or ±2% of the temperature measurement value, whichever is greater
Temperature measurement resolution: 0.1℃
Temperature measurement tool: Center point temperature measurement/cold spot hot spot tracking
Temperature alarm: Full frame high temperature/low temperature alarm

Camera function: Support. With temperature data
Image output: PC real-time image projection
Secondary analysis: Equipped with PC analysis software, which can perform secondary analysis on data
Display size: 2.8 inch LCD

Screen resolution 320*240

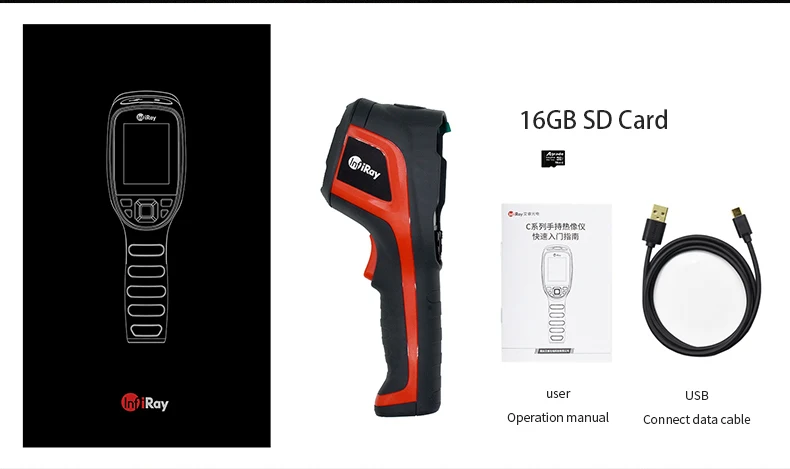

Storage: Standard 16GB SD card, support expansion
Working hours: 11h @25℃ indoor
Charging time: about 4h @25℃ indoor
Size: 237*75*92mm
Working temperature: -10℃- +50℃
Storage temperature: -20℃- +60℃
Fall protection: 2m
Protection level: IP54


SPECIFICATIONS

Brand Name: INFIRAY

Certification: CE

Is Smart Device: Yes

Power Type: Lithium battery

Style: Handheld

Display Size: 1.9 Inches & Under

Features

Sensor Resolution: 256*192
Field of view: 56°*42.2°
NETD : <50mk
IFOV: 3.8mrad
Focusing method: Free focus
Frame rate: 25hz
Temperature measurement range: -20℃ - +550℃(-4℉-1022℉)
Temperature measurement accuracy: ±2℃ or ±2% of the temperature measurement value, whichever is greater
Temperature measurement resolution: 0.1℃
Temperature measurement tool: Center point temperature measurement/cold spot hot spot tracking
Temperature alarm: Full frame high temperature/low temperature alarm

Camera function: Support. With temperature data
Image output: PC real-time image projection
Secondary analysis: Equipped with PC analysis software, which can perform secondary analysis on data
Display size: 2.8 inch LCD

Screen resolution 320*240
Storage: Standard 16GB SD card, support expansion
Working hours: 11h @25℃ indoor
Charging time: about 4h @25℃ indoor
Size: 237*75*92mm
Working temperature: -10℃- +50℃
Storage temperature: -20℃- +60℃
Fall protection: 2m
Protection level: IP54
